2 Foot Borosilicate Sight Level w/2 SS Valves with Tri Clamp/Tri Clover Fitting

2 Foot Borosilicate Sight Level w/2 SS Valves with Tri Clamp/Tri Clover Fitting

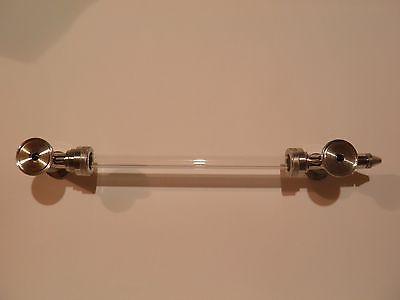

2 Foot Length of 40 Silicate Glass/Tubing & Two Stainless Steel Valves with Tri Clamp/Tri Clover Fittings.

This is for a 2 foot increment of 40 Silicate Glass/tubing with an upper sight level valve, and a lower sight level valve with a drain. Both valves have 1.5" tri clamp/tri clover fittings and are made of 304 Stainless Steel.

40 Silicate Glass/tubing is known for having high impact strength.

This unit has a maximum pressure rating of 125.

DETERMINING TRI CLAMP SIZE

Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a 1.5" Tri Clamp to 1/2" hose barb adapter is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting.

If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to contact us .





Pipe Outer Diameter
A

Flange Outer Diameter
B

Pipe Inner Diameter
C

Tri Clamp Dimension Diagram

1"

1.98"

.87"

1.5"

1.98"

1.37"

2"

2.52"

1.87"

2.5"

3.05"

2.37"

3"

3.58"

2.87"

4"

4.68"

3.83"

6"

6.57"

5.78"

8"

8.57"

7.78"

10"

10.57"

9.69"

12"

12.57"

11.81"

  • $149.72 Each
